Unitanks Offer Maximum Flexibility

Get the best features of a Beer Fermenter and a Beer Brite Tank in one piece of brewery equipment.

paul-mueller-uni-tank

Features

  • PED/ASME Code
  • 38 °C Design Temperature
  • 70° Bottom Cone Included Angle
  • 2 Cooling Zones on Shell
  • 1 Cooling Zone on Cone
  • 1 Thermowell
  • 3" of Insulation
  • Fully Welded 12 Gauge Stainless Steel Outer Jacket
  • Inswing Manway
  • Removable CIP Assembly
  • Racking Arm
  • Calibrated Sight Tube for Level Readings
  • Carbonation Port

Finish Options:
  • # 4 Polished Interior Finish
  • # 4 Polished Exterior Finish

Tank Trim:
  • 2-Hole RLV Assembly
  • Combination Pressure / Vacuum Relief
  • Rotary Spray Ball Upgrade
  • Butterfly & Sample Valves
  • Pressure Gauge
  • Stainless Steel Fermentation Airlock
  • Carbonation Stone

Leg Options:
  • Adjustable Base Plates
  • Tank Skirt

Fitting Options:
  • Tri-Clamp or DN Connection Types
  • 2 1/2" or 4" Dry Hop Port
  • 3/4" or 1 1/2" Sample Valve
  • Up to 2 Additional Thermowells
  • Under Jacket Glycol Piping
  • 12", 18" & 24" Outlet Height
paul-mueller-beer-genius-unitanks

UniTank

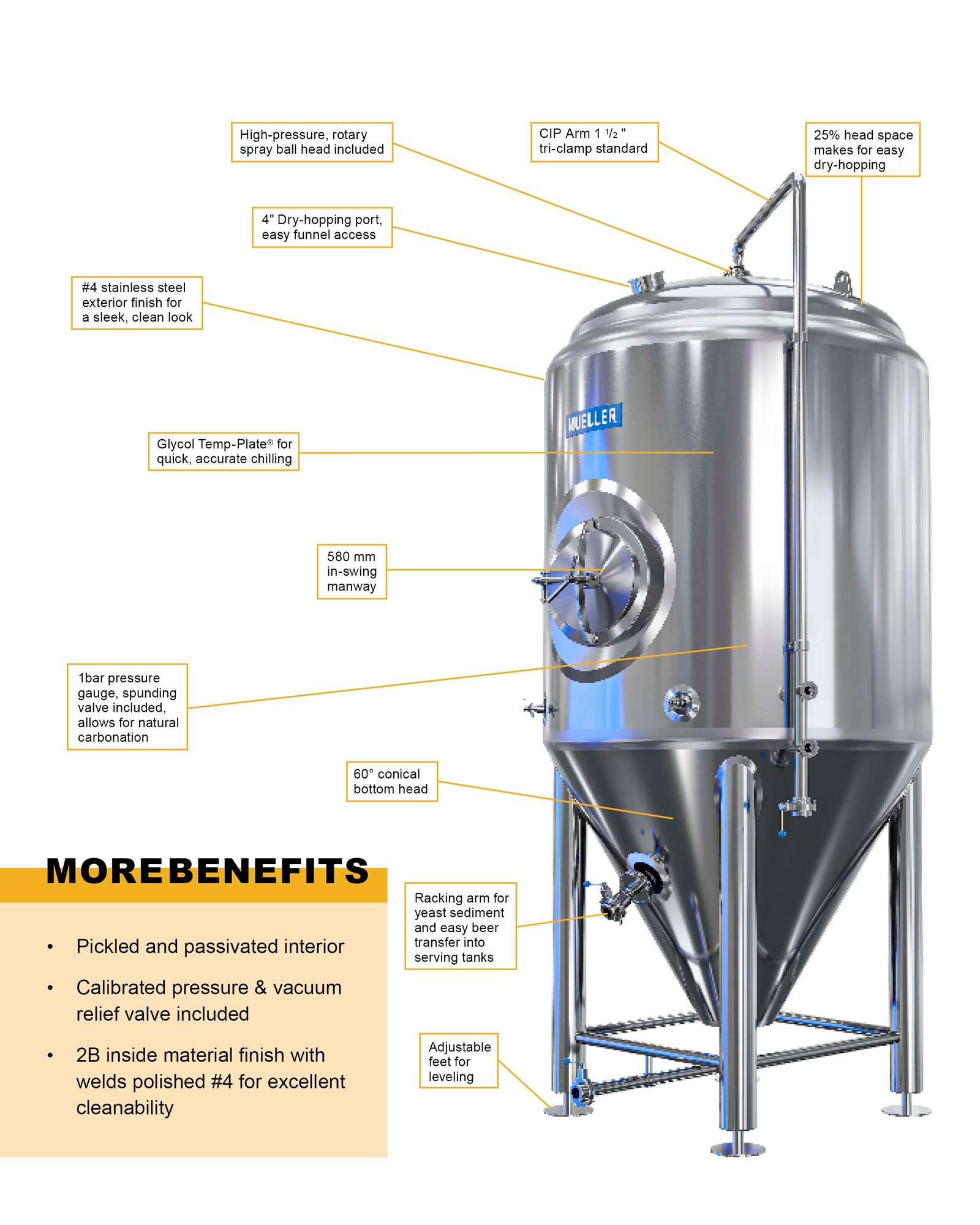

Beer genius unitank

Specifications and Sizing

Volume (HL)

Dimensions (in mm)

Net

Gross

Inner Diameter

Outer Diameter

Straight Side

Overall Vessel Length

Overall Height

17

23

1193.8

1371.6

1612.9

TBD

TBD

23

40

1365.25

1593.85

1930.4

3489.33

3810 –4114.8

47

48

1511.3

1682.75

2057.4

3692.53

4013.2 –4318

58

79.8

1784.35

1962.15

2451.1

4343.4

4648.2–4953

70

95

1892.3

2070.1

2603.5

4572

4902.2 –5207

93

118

2038.35

2216.15

2819.4

4927.6

5232.4 –5537.2

105

143

2165.35

2343.15

2997.2

5238.75

5562.6 –5867.4

117

162

2247.9

2425.7

3111.5

5422.9

5740.4 –6045.2

140

191

2387.6

2565.4

3302

5762.63

6070.6 –6375.4
